“Dark-light” indirect reflector
Indirect (inter-reflection) aluminium reflector ρ≥ 98 % (ISO 7668 / DIN 5036-3, EN 10204 3.1 material certificate), recessed source not visible beyond 70°: optical efficiency ≥ 95 %, ULOR 0 %, class G*6, TI ≤ 10 %.
D-SLS-14 LOTUS
LOTUS — Street lighting
Street platform 20–250 W

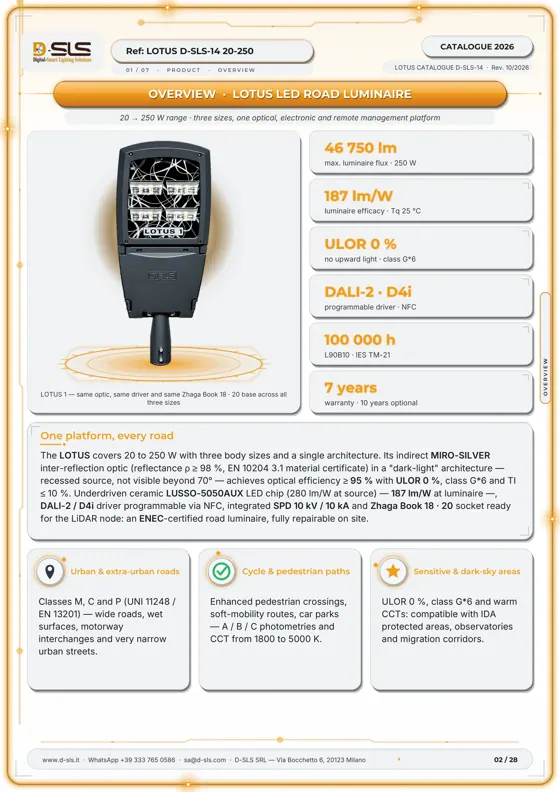

LOTUS D-SLS-14 is D-SLS's flagship LED street light: three sizes (LOTUS 3, 2 and 1) cover 20 to 250 W with the same optic, the same driver and the same remote-management socket. Its indirect 'dark-light' reflector (≥ 98 % reflectance) lights the road without glare and with no upward light (ULOR 0 %). Fully serviceable on site and ENEC certified, it replaces a 250 W high-pressure sodium lamp with an 80 W LED.
46 750 lmmax. luminous flux
187 lm/Wluminaire efficacy
20 – 250 Wpower range
IP67 · IK09sealing · impact
DALI-2 · D4icontrol
7 yrs · 10 optionalwarranty

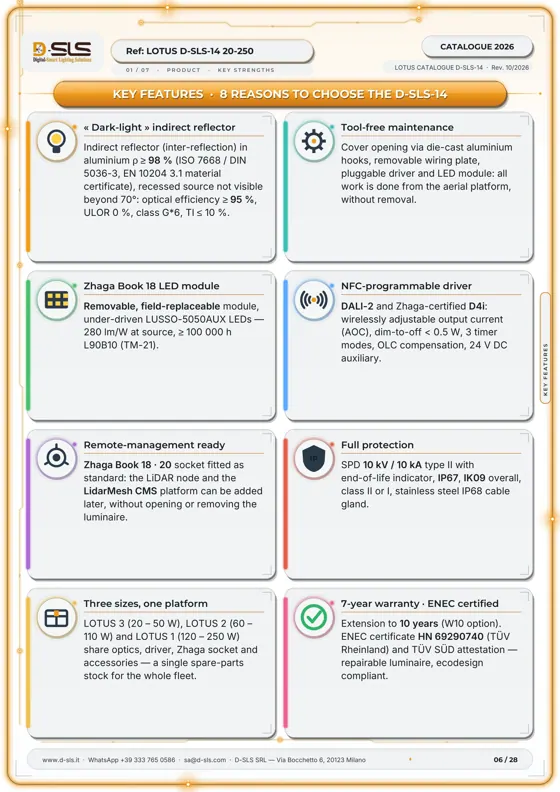

Key features
Tool-free maintenance
Hook-opening cover in die-cast aluminium, removable gear tray, plug-in driver and LED module: all work is done from the aerial platform, without removal.
Zhaga Book 18 LED module
Removable, on-site replaceable module, under-driven LUSSO-5050AUX LEDs — 280 lm/W at source, ≥ 100 000 h L90B10 (TM-21).
NFC-programmable driver
Zhaga-certified DALI-2 and D4i: wireless adjustable output current (AOC), dim-to-off < 0.5 W, 3 timer modes, OLC compensation, 24 V DC auxiliary.
Remote management ready
Zhaga Book 18 · 20 socket fitted as standard: the LiDAR node and the LidarMesh CMS platform are added later, without opening or removing the luminaire.
Full protection
Type II SPD 10 kV / 10 kA with end-of-life indicator, IP67, IK09 overall, class II or I, IP68 stainless cable gland.
Three sizes, one platform
LOTUS 3 (20 – 50 W), LOTUS 2 (60 – 110 W) and LOTUS 1 (120 – 250 W) share optics, driver, Zhaga base and accessories — a single spare-parts stock for the entire fleet.
7-year warranty · ENEC certified
Extension to 10 years (W10 option). ENEC certificate HN 69290740 (TÜV Rheinland) and TÜV SÜD attestation — repairable luminaire, ecodesign compliant.

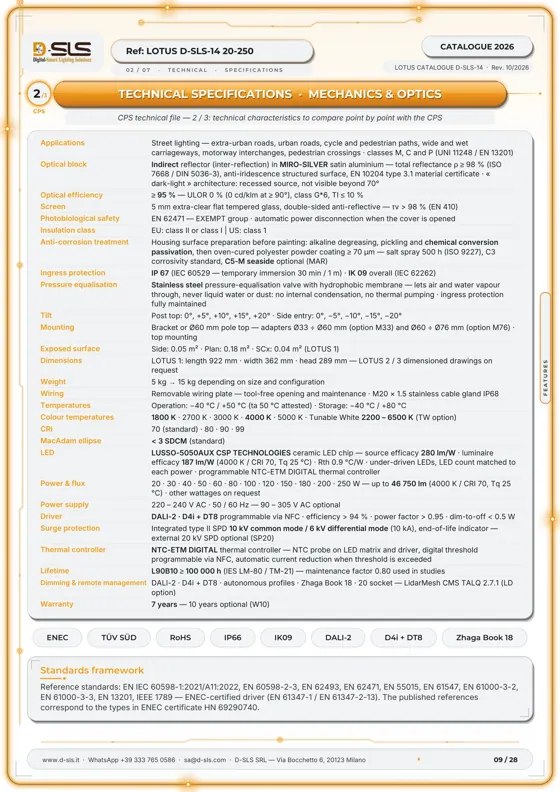

Technical specifications
| Applications | Public lighting — rural roads, urban roads, cycle and pedestrian paths, wide and wet carriageways, motorway interchanges, pedestrian crossings · classes M, C and P (UNI 11248 / EN 13201) |
|---|---|
| Optical unit | Indirect (inter-reflection) reflector in satin MIRO-SILVER aluminium — total reflectance ρ≥ 98 % (ISO 7668 / DIN 5036-3), anti-iridescence textured surface, EN 10204 type 3.1 material certificate · “dark-light” architecture: recessed source, not visible beyond 70° |
| Optical efficiency | ≥ 95 % — ULOR 0 % (0 cd/klm at ≥ 90°), class G*6, TI ≤ 10 % |
| Cover glass | 5 mm extra-clear flat tempered glass, double-sided anti-reflective — τv > 98 % (EN 410) |
| Photobiological safety | EN 62471 — EXEMPT group · automatic power disconnection when the cover is opened |
| Insulation class | EU: class II or class I | US: class 1 |
| Anti-corrosion treatment | Housing surface preparation before painting: alkaline degreasing, pickling and passivation by chemical conversion, then oven-cured polyester powder coating ≥ 70 µm — salt spray 500 h (ISO 9227), C3 corrosivity as standard, C5-M seaside as option (MAR) |
| Ingress protection | IP 67 (IEC 60529 — temporary immersion 30 min / 1 m) · IK 09 overall (IEC 62262) |
| Pressure equalisation | Pressure-equalising valve in stainless steel with hydrophobic membrane — lets air and water vapour through, never liquid water or dust: no internal condensation or thermal pumping · ingress protection fully preserved |
| Tilt | Post-top: 0°, +5°, +10°, +15°, +20° · Side-entry: 0°, −5°, −10°, −15°, −20° |
| Mounting | Side-entry or post-top Ø60 mm — adaptors Ø33 ÷ Ø60 mm (M33 option) and Ø60 ÷ Ø76 mm (M76 option) · top fixing |
| Exposed surface | Side: 0.05 m² · Plan: 0.18 m² · SCx: 0.04 m² (LOTUS 1) |
| Dimensions | LOTUS 1: length 922 mm · width 362 mm · head 289 mm — LOTUS 2 / 3 dimensioned drawings on request |
| Weight | 5 kg → 15 kg depending on size and configuration |
| Wiring | Removable gear tray — tool-free opening and maintenance · M20 × 1.5 stainless cable gland IP68 |
| Temperatures | Operation: −40 °C / +50 °C (ta 50 °C certified) · Storage: −40 °C / +80 °C |
| Colour temperatures | 1800 K · 2700 K · 3000 K · 4000 K · 5000 K · Tunable White 2200 – 6500 K (TW option) |
| CRI | 70 (standard) · 80 · 90 · 99 |
| MacAdam ellipse | < 3 SDCM (standard) |
| Wattages & flux | 20 · 30 · 40 · 50 · 60 · 80 · 100 · 120 · 150 · 180 · 200 · 250 W — up to 46 750 lm (4000 K / CRI 70, Tq 25 °C) · other wattages on request |
| Power supply | 220 – 240 V AC · 50 / 60 Hz — 90 – 305 V AC optional |
| Driver | Programmable DALI-2 · D4i + DT8 via NFC · efficiency > 94 % · power factor > 0.95 · dim-to-off < 0.5 W |
| Surge protection | Integrated type II SPD 10 kV common mode / 6 kV differential mode (10 kA), end-of-life indicator — 20 kV external SPD optional (SP20) |
| Thermal controller | Thermal controller NTC-ETM DIGITAL — NTC probe on LED array and driver, digital threshold programmable via NFC, automatic current reduction when the threshold is exceeded |
| Lifetime | L90B10 ≥ 100 000 h (IES LM-80 / TM-21) — maintenance factor 0.80 used in studies |
| Dimming & remote management | DALI-2 · D4i + DT8 · stand-alone profiles · Zhaga Book 18 · 20 socket — LidarMesh CMS TALQ 2.7.1 (LD option) |
| Warranty | 7 years — 10 years optional (W10) |
Extract from the 2026 catalogue — non-contractual document. LDT / IES photometric files, drawings and test reports on request.
