27 wattages, one chassis
From 200 to 2 000 W with identical modules: a single spare part for the entire sports facility.
D-SLS-25M

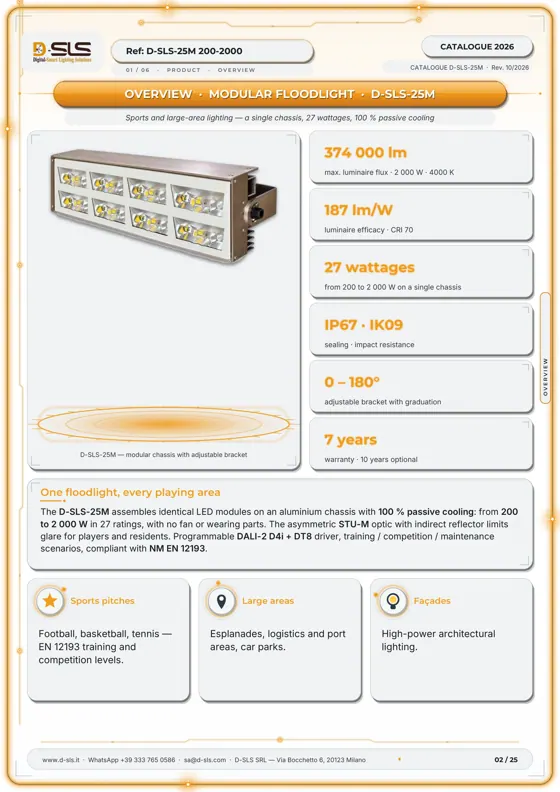

D-SLS-25M — Modular floodlight
Sports & large areas · 200–2000 W
D-SLS-25M is a modular LED floodlight for stadiums, sports fields and large areas: a single chassis with an adjustable bracket offers 27 power ratings from 200 to 2,000 W, up to 374,000 lm. Fan-less, 100 % passive cooling and IP67 · IK09 sealing ensure a long service life, with DALI-2 · D4i control and optional LidarMesh remote management.
374 000 lmmax. luminous flux
187 lm/Wluminaire efficacy
200 – 2 000 Wpower range
IP67 · IK09sealing · impact

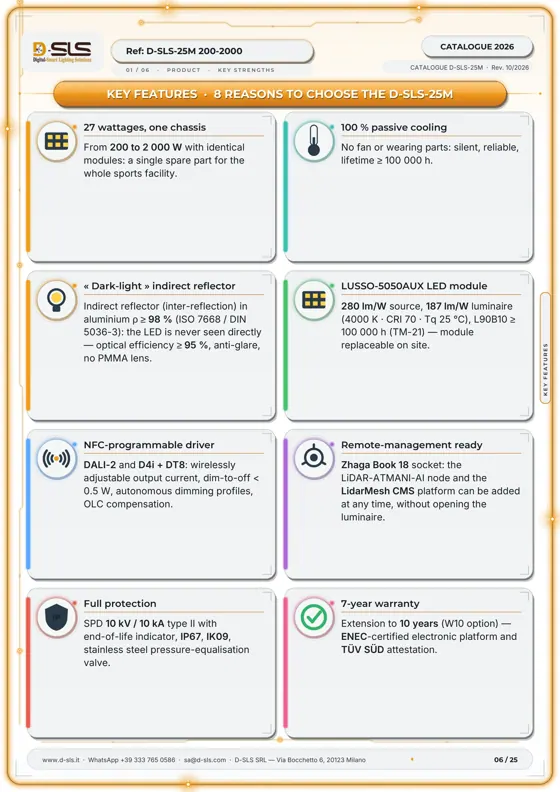

Key features
100 % passive cooling
No fan, no wearing parts: silence, reliability and lifetime ≥ 100 000 h.
“Dark-light” indirect reflector
Indirect (inter-reflection) aluminium reflector ρ≥ 98 % (ISO 7668 / DIN 5036-3): the LED is never seen directly — optical efficiency ≥ 95 %, glare-free, no PMMA lens.
LUSSO-5050AUX LED module
Source 280 lm/W, luminaire 187 lm/W (4000 K · CRI 70 · Tq 25 °C), L90B10 ≥ 100 000 h (TM-21) — module replaceable on site.
NFC-programmable driver
DALI-2 and D4i + DT8: wirelessly adjustable output current, dim-to-off < 0.5 W, stand-alone dimming profiles, OLC compensation.
Remote management ready
Zhaga Book 18 socket: the LiDAR-ATMANI-AI node and the LidarMesh CMS platform can be added at any time, without opening the luminaire.
Full protection
SPD 10 kV / 10 kA type II with end-of-life indicator, IP67, IK09, stainless-steel pressure-equalising valve.
7-year warranty
Extension to 10 years (W10 option) — ENEC-certified electronic platform and TÜV SÜD attestation.

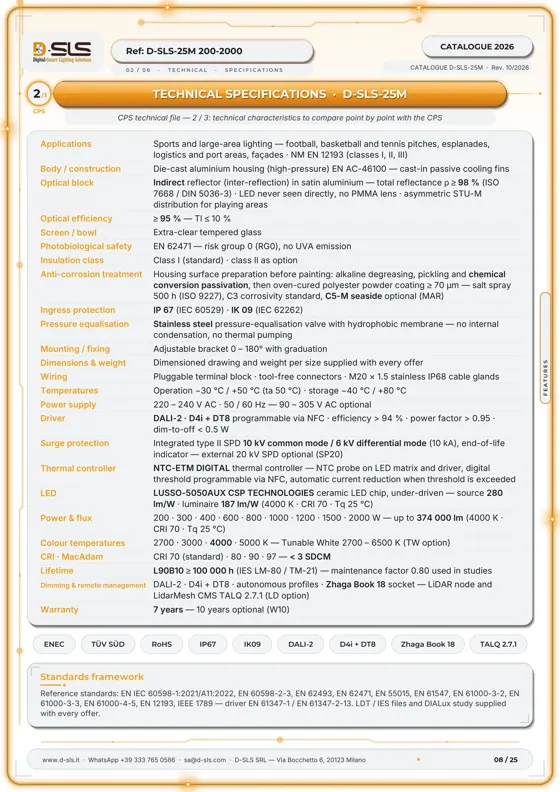

Technical specifications
| Applications | Sports and large-area lighting — football, basketball and tennis grounds, esplanades, logistics and port areas, façades · NM EN 12193 (classes I, II, III) |
|---|---|
| Body / construction | High-pressure die-cast aluminium housing EN AC-46100 — passive cooling fins cast in |
| Optical unit | Indirect (inter-reflection) satin aluminium reflector — total reflectance ρ≥ 98 % (ISO 7668 / DIN 5036-3) · LED never seen directly, no PMMA lens · STU-M asymmetric distribution for playgrounds |
| Optical efficiency | ≥ 95 % — TI ≤ 10 % |
| Screen / bowl | Extra-clear tempered glass |
| Photobiological safety | EN 62471 — risk group 0 (RG0), no UVA emission |
| Insulation class | Class I (standard) · class II optional |
| Anti-corrosion treatment | Housing surface preparation before painting: alkaline degreasing, pickling and chemical conversion passivation, then oven-cured polyester powder coating ≥ 70 µm — salt spray 500 h (ISO 9227), corrosivity C3 standard, C5-M seaside optional (MAR) |
| Ingress protection | IP 67 (IEC 60529) · IK 09 (IEC 62262) |
| Pressure equalisation | Stainless-steel pressure-equalising valve with hydrophobic membrane — no internal condensation or thermal pumping |
| Mounting / fixing | Adjustable bracket 0 – 180° with scale |
| Dimensions & weight | Dimensioned drawing and weight per size supplied with each offer |
| Wiring | Plug-in terminal block · tool-free connectors · M20 × 1.5 stainless cable gland IP68 |
| Temperatures | Operation −30 °C / +50 °C (ta 50 °C) · storage −40 °C / +80 °C |
| Power supply | 220 – 240 V AC · 50 / 60 Hz — 90 – 305 V AC optional |
| Driver | Programmable DALI-2 · D4i + DT8 via NFC · efficiency > 94 % · power factor > 0.95 · dim-to-off < 0.5 W |
| Surge protection | Integrated type II SPD 10 kV common mode / 6 kV differential mode (10 kA), end-of-life indicator — 20 kV external SPD optional (SP20) |
| Thermal controller | Thermal controller NTC-ETM DIGITAL — NTC probe on LED array and driver, digital threshold programmable via NFC, automatic current reduction when the threshold is exceeded |
| Wattages & flux | 200 · 300 · 400 · 600 · 800 · 1000 · 1200 · 1500 · 2000 W — up to 374 000 lm (4000 K · CRI 70 · Tq 25 °C) |
| Colour temperatures | 2700 · 3000 · 4000 · 5000 K — Tunable White 2700 – 6500 K (TW option) |
| CRI · MacAdam | CRI 70 (standard) · 80 · 90 · 97 — < 3 SDCM |
| Lifetime | L90B10 ≥ 100 000 h (IES LM-80 / TM-21) — maintenance factor 0.80 used in studies |
| Dimming & remote management | DALI-2 · D4i + DT8 · stand-alone profiles · Zhaga Book 18 socket — LiDAR node and LidarMesh CMS TALQ 2.7.1 (LD option) |
| Warranty | 7 years — 10 years optional (W10) |
Extract from the 2026 catalogue — non-contractual document. LDT / IES photometric files, drawings and test reports on request.
