D-SLS-03 — Cigar light column

Name: D-SLS-03 — Cigar light column
Brand: D-SLS
SKU: D-SLS-03

Ø200 × 2 m module · 20–150 W

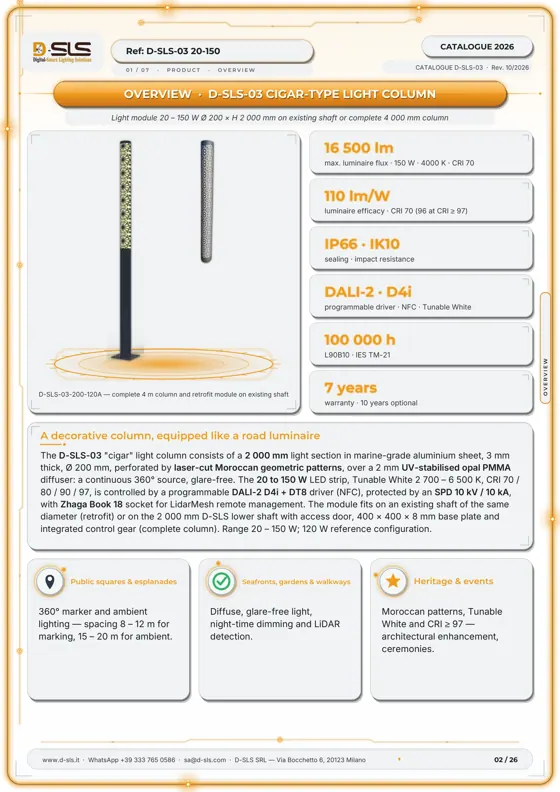

D-SLS-03 is a cigar-type light column: a Ø 200 × 2,000 mm module in marine-grade aluminium sheet, laser-cut with Moroccan patterns, with a 360° opal diffuser. It fits onto an existing pole or comes as a complete 4 m column, from 20 to 150 W, with colour rendering up to CRI 97 and tunable white — ideal for squares, seafronts, esplanades and gardens.

16 500 lmmax. luminous flux

20 – 150 Wpower range

IP66 · IK10sealing · impact

DALI-2 · D4icontrol

Browse the catalogue Download the PDF Request a quote WhatsApp

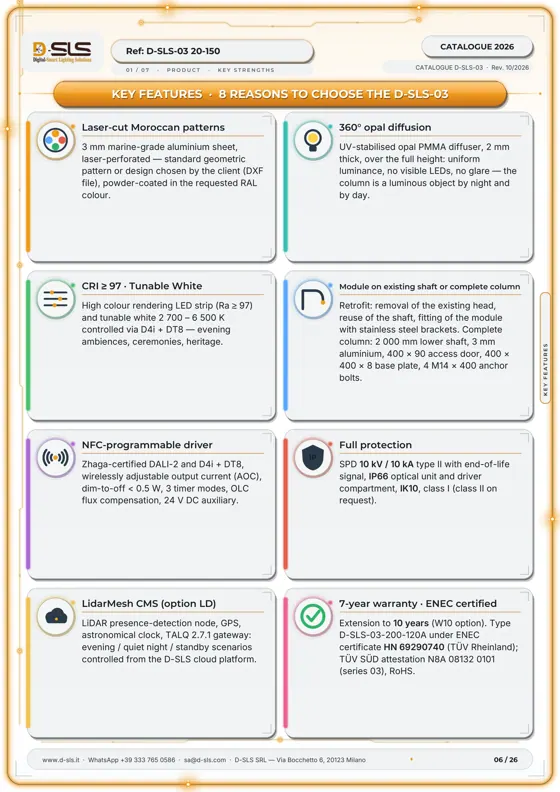

Key features

Laser-cut Moroccan patterns

Marine-grade aluminium sheet, 3 mm thick, laser-cut — standard geometric pattern or client's own design (DXF file), powder-coated in the requested RAL colour.

360° opal diffusion

UV-stabilised opal PMMA diffuser, 2 mm thick, over the full height: uniform luminance, no visible LEDs, no glare — the column is a luminous object by night and by day.

CRI ≥ 97 · Tunable White

High colour rendering LED strip (Ra ≥ 97) and tunable white 2 700 – 6 500 K controlled via D4i + DT8 — evening moods, ceremonies, heritage.

NFC-programmable driver

Zhaga-certified DALI-2 and D4i + DT8, wireless adjustable output current (AOC), dim-to-off < 0.5 W, 3 timer modes, OLC flux compensation, 24 V DC auxiliary.

Full protection

Type II SPD 10 kV / 10 kA with end-of-life signal, IP66 light section and driver compartment, IK10, class I (class II on request).

LidarMesh CMS (LD option)

LiDAR presence-detection node, GPS, astronomical clock, TALQ 2.7.1 gateway: evening / quiet night / standby scenarios managed from the D-SLS cloud platform.

7-year warranty · ENEC certified

Extension to 10 years (W10 option). Type D-SLS-03-200-120A on ENEC certificate HN 69290740 (TÜV Rheinland); TÜV SÜD attestation N8A 08132 0101 (series 03), RoHS.

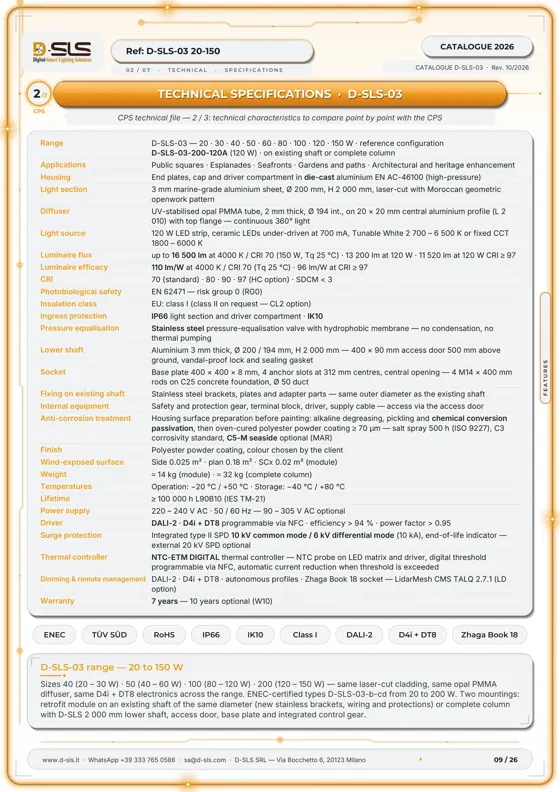

Technical specifications

Range	D-SLS-03 — 20 · 30 · 40 · 50 · 60 · 80 · 100 · 120 · 150 W · reference configuration D-SLS-03-200-120A (120 W) · on existing shaft or complete column
Applications	Public squares · Esplanades · Seafronts · Gardens and paths · Architectural and heritage lighting
Housing	End plates, cap and driver compartment in die-cast aluminium EN AC-46100 (high-pressure)
Light section	Marine-grade aluminium sheet 3 mm thick, Ø 200 mm, H 2 000 mm, laser-cut openwork Moroccan geometric pattern
Diffuser	UV-stabilised opal PMMA tube, 2 mm thick, Ø 194 int., on 20 × 20 mm aluminium central profile (L 2 010) with top flange — continuous 360° light
Light source	120 W LED strip, ceramic LEDs underdriven at 700 mA, Tunable White 2 700 – 6 500 K or fixed CCT 1800 – 6000 K
Luminaire flux	up to 16 500 lm at 4000 K / CRI 70 (150 W, Tq 25 °C) · 13 200 lm at 120 W · 11 520 lm at 120 W CRI ≥ 97
Luminaire efficacy	110 lm/W at 4000 K / CRI 70 (Tq 25 °C) · 96 lm/W at CRI ≥ 97
CRI	70 (standard) · 80 · 90 · 97 (HC option) · SDCM < 3
Photobiological safety	EN 62471 — risk group 0 (RG0)
Insulation class	EU: class I (class II on request — option CL2)
Ingress protection	IP66 optical part and driver compartment · IK10
Pressure equalisation	Pressure-equalising valve in stainless steel with hydrophobic membrane — no condensation, no thermal pumping
Lower shaft	Aluminium 3 mm thick, Ø 200 / 194 mm, H 2 000 mm — 400 × 90 mm access door at 500 mm above ground, anti-vandal lock and sealing gasket
Socket	Base plate 400 × 400 × 8 mm, 4 anchor slots at 312 mm centres, central cable entry — 4 M14 × 400 mm anchor bolts in C25 concrete base, Ø 50 duct
Mounting on existing shaft	Stainless-steel brackets, plates and adapters — same outer diameter as the existing shaft
Internal equipment	Safety and protection devices, connection terminal block, driver, power cable — access via the inspection door
Anti-corrosion treatment	Housing surface preparation before painting: alkaline degreasing, pickling and passivation by chemical conversion, then oven-cured polyester powder coating ≥ 70 µm — salt spray 500 h (ISO 9227), C3 corrosivity as standard, C5-M seaside as option (MAR)
Finish	Polyester powder coating, colour chosen by the client
Wind-exposed area	Side 0.025 m² · plan 0.18 m² · SCx 0.02 m² (module)
Weight	≈ 14 kg (module) · ≈ 32 kg (complete column)
Temperatures	Operation: −20 °C / +50 °C · Storage: −40 °C / +80 °C
Lifetime	≥ 100 000 h L90B10 (IES TM-21)
Power supply	220 – 240 V AC · 50 / 60 Hz — 90 – 305 V AC optional
Driver	DALI-2 · D4i + DT8 programmable via NFC · efficiency > 94 % · power factor > 0.95
Surge protection	Integrated type II SPD 10 kV common mode / 6 kV differential mode (10 kA), end-of-life indicator — optional 20 kV external SPD
Thermal controller	Thermal controller NTC-ETM DIGITAL — NTC probe on LED array and driver, digital threshold programmable via NFC, automatic current reduction when the threshold is exceeded
Dimming & remote management	DALI-2 · D4i + DT8 · standalone profiles · Zhaga Book 18 receptacle — LidarMesh CMS TALQ 2.7.1 (LD option)
Warranty	7 years — 10 years optional (W10)
