K4 Kit — LED retrofit

Name: K4 Kit — LED retrofit
Brand: D-SLS
SKU: Kit D-SLS-K4

LED retrofit kit

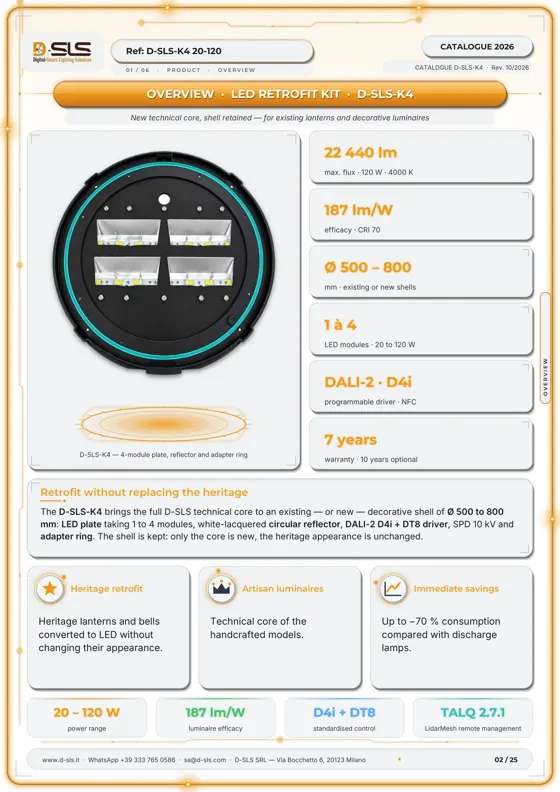

The D-SLS-K4 kit renews the technical core of existing lanterns and decorative luminaires while keeping their housing: a plate with 1 to 4 reflector LED modules, 20 to 120 W, with an adapter ring for diameters from 500 to 800 mm. The most economical way to switch to LED (up to 22,440 lm, 187 lm/W) without changing the look of heritage lighting.

22 440 lmmax. luminous flux

187 lm/Wluminaire efficacy

1 – 4 · 20 – 120 WLED modules

Ø 500 – 800 mmhousings

Browse the catalogue Download the PDF Request a quote WhatsApp

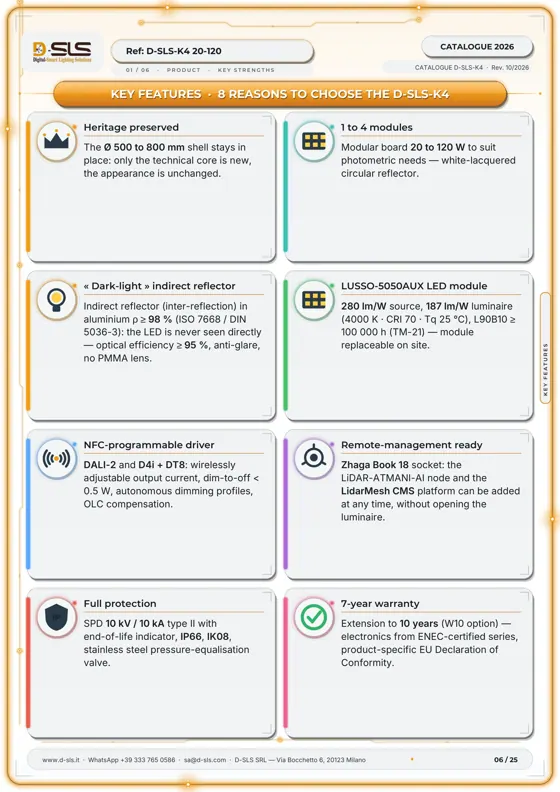

Key features

Heritage preserved

The Ø 500 to 800 mm shell stays in place: only the technical core is new, the look is unchanged.

1 to 4 modules

Modular board 20 to 120 W to suit photometric needs — white-lacquered circular reflector.

“Dark-light” indirect reflector

Indirect (inter-reflection) aluminium reflector ρ≥ 98 % (ISO 7668 / DIN 5036-3): the LED is never seen directly — optical efficiency ≥ 95 %, glare-free, no PMMA lens.

LUSSO-5050AUX LED module

Source 280 lm/W, luminaire 187 lm/W (4000 K · CRI 70 · Tq 25 °C), L90B10 ≥ 100 000 h (TM-21) — module replaceable on site.

NFC-programmable driver

DALI-2 and D4i + DT8: wirelessly adjustable output current, dim-to-off < 0.5 W, stand-alone dimming profiles, OLC compensation.

Remote management ready

Zhaga Book 18 socket: the LiDAR-ATMANI-AI node and the LidarMesh CMS platform can be added at any time, without opening the luminaire.

Full protection

Type II SPD 10 kV / 10 kA with end-of-life indicator, IP66, IK08, stainless steel pressure-equalising valve.

7-year warranty

Extension to 10 years (W10 option) — electronics from ENEC-certified series, product-specific EU declaration of conformity.

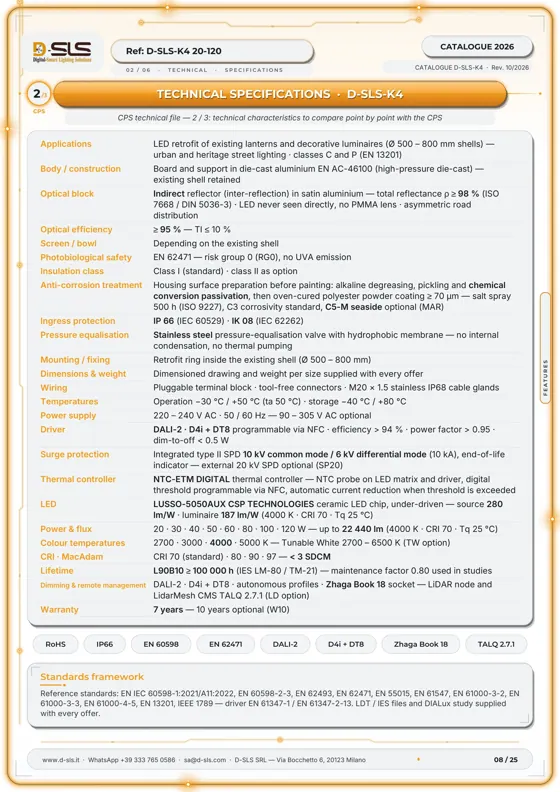

Technical specifications

Applications	LED retrofit of existing decorative lanterns and luminaires (Ø 500 – 800 mm shells) — urban and heritage public lighting · classes C and P (EN 13201)
Body / construction	Gear tray and bracket in EN AC-46100 high-pressure die-cast aluminium — existing shell retained
Optical unit	Indirect (inter-reflection) satin aluminium reflector — total reflectance ρ≥ 98 % (ISO 7668 / DIN 5036-3) · LED never seen directly, no PMMA lens · asymmetric road distribution
Optical efficiency	≥ 95 % — TI ≤ 10 %
Screen / bowl	According to existing shell
Photobiological safety	EN 62471 — risk group 0 (RG0), no UVA emission
Insulation class	Class I (standard) · class II optional
Anti-corrosion treatment	Housing surface preparation before painting: alkaline degreasing, pickling and chemical conversion passivation, then oven-cured polyester powder coating ≥ 70 µm — salt spray 500 h (ISO 9227), corrosivity C3 standard, C5-M seaside optional (MAR)
Ingress protection	IP 66 (IEC 60529) · IK 08 (IEC 62262)
Pressure equalisation	Stainless-steel pressure-equalising valve with hydrophobic membrane — no internal condensation or thermal pumping
Mounting / fixing	Adapter ring inside the existing shell (Ø 500 – 800 mm)
Dimensions & weight	Dimensioned drawing and weight per size supplied with each offer
Wiring	Plug-in terminal block · tool-free connectors · M20 × 1.5 stainless cable gland IP68
Temperatures	Operation −30 °C / +50 °C (ta 50 °C) · storage −40 °C / +80 °C
Power supply	220 – 240 V AC · 50 / 60 Hz — 90 – 305 V AC optional
Driver	Programmable DALI-2 · D4i + DT8 via NFC · efficiency > 94 % · power factor > 0.95 · dim-to-off < 0.5 W
Surge protection	Integrated type II SPD 10 kV common mode / 6 kV differential mode (10 kA), end-of-life indicator — 20 kV external SPD optional (SP20)
Thermal controller	Thermal controller NTC-ETM DIGITAL — NTC probe on LED array and driver, digital threshold programmable via NFC, automatic current reduction when the threshold is exceeded
Wattages & flux	20 · 30 · 40 · 50 · 60 · 80 · 100 · 120 W — up to 22 440 lm (4000 K · CRI 70 · Tq 25 °C)
Colour temperatures	2700 · 3000 · 4000 · 5000 K — Tunable White 2700 – 6500 K (TW option)
CRI · MacAdam	CRI 70 (standard) · 80 · 90 · 97 — < 3 SDCM
Lifetime	L90B10 ≥ 100 000 h (IES LM-80 / TM-21) — maintenance factor 0.80 used in studies
Dimming & remote management	DALI-2 · D4i + DT8 · stand-alone profiles · Zhaga Book 18 socket — LiDAR node and LidarMesh CMS TALQ 2.7.1 (LD option)
Warranty	7 years — 10 years optional (W10)
RoHS	IP66
