Period silhouette
Crown, cap and ornaments in cast aluminium: the look of a classic lantern, with no compromise on photometry.
D-SLS-18

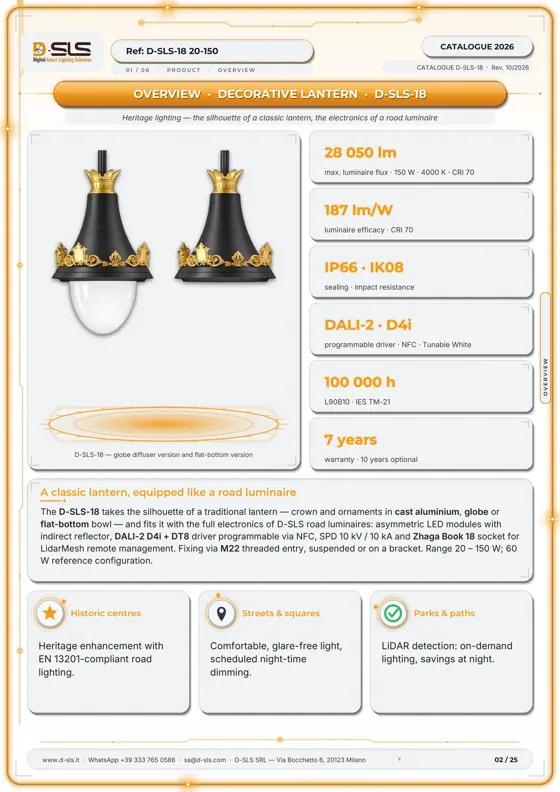

D-SLS-18 — Decorative lantern
Decorative 20–150 W
D-SLS-18 is a decorative lantern for heritage lighting: the silhouette of a classic lantern with the electronics of a street light. Available with a globe bowl or a flat bottom, from 20 to 150 W, it reaches 28,050 lm with a programmable DALI-2 · D4i driver and a remote-management socket ready for the LiDAR node.
28 050 lmmax. luminous flux
187 lm/Wluminaire efficacy
20 – 150 Wpower range
IP66 · IK08sealing · impact
Key features
Two bowls, one platform
Globe or flat-bottom version, M22 threaded entry for suspension or bracket — same spare parts.
“Dark-light” indirect reflector
Indirect (inter-reflection) aluminium reflector ρ≥ 98 % (ISO 7668 / DIN 5036-3): the LED is never seen directly — optical efficiency ≥ 95 %, glare-free, no PMMA lens.
LUSSO-5050AUX LED module
Source 280 lm/W, luminaire 187 lm/W (4000 K · CRI 70 · Tq 25 °C), L90B10 ≥ 100 000 h (TM-21) — module replaceable on site.
NFC-programmable driver
DALI-2 and D4i + DT8: wirelessly adjustable output current, dim-to-off < 0.5 W, stand-alone dimming profiles, OLC compensation.
Remote management ready
Zhaga Book 18 socket: the LiDAR-ATMANI-AI node and the LidarMesh CMS platform can be added at any time, without opening the luminaire.
Full protection
Type II SPD 10 kV / 10 kA with end-of-life indicator, IP66, IK08, stainless steel pressure-equalising valve.
7-year warranty
Extension to 10 years (W10 option) — ENEC-certified electronic platform and TÜV SÜD attestation.

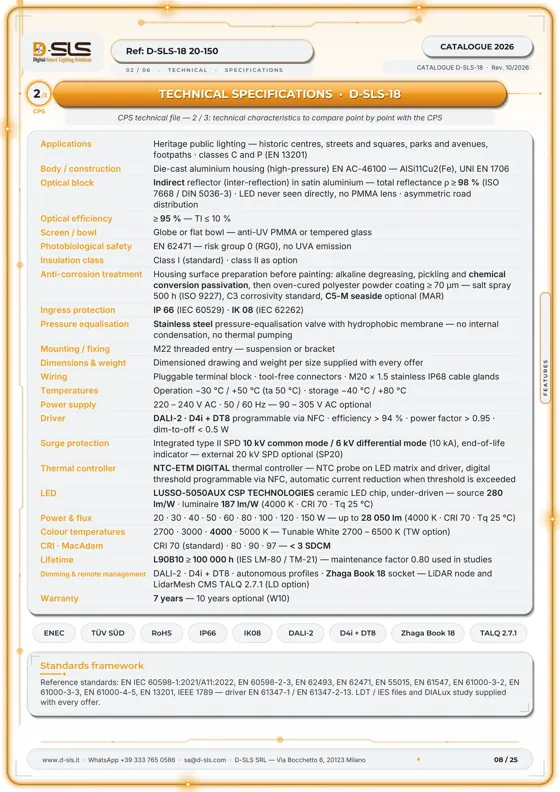

Technical specifications
| Applications | Heritage public lighting — historic centres, streets and squares, parks and avenues, footpaths · classes C and P (EN 13201) |
|---|---|
| Body / construction | Die-cast aluminium housing (high-pressure) EN AC-46100 — AlSi11Cu2(Fe), UNI EN 1706 |
| Optical unit | Indirect (inter-reflection) satin aluminium reflector — total reflectance ρ≥ 98 % (ISO 7668 / DIN 5036-3) · LED never seen directly, no PMMA lens · asymmetric road distribution |
| Optical efficiency | ≥ 95 % — TI ≤ 10 % |
| Screen / bowl | Globe or flat-bottom bowl — UV-resistant PMMA or tempered glass |
| Photobiological safety | EN 62471 — risk group 0 (RG0), no UVA emission |
| Insulation class | Class I (standard) · class II optional |
| Anti-corrosion treatment | Housing surface preparation before painting: alkaline degreasing, pickling and chemical conversion passivation, then oven-cured polyester powder coating ≥ 70 µm — salt spray 500 h (ISO 9227), corrosivity C3 standard, C5-M seaside optional (MAR) |
| Ingress protection | IP 66 (IEC 60529) · IK 08 (IEC 62262) |
| Pressure equalisation | Stainless-steel pressure-equalising valve with hydrophobic membrane — no internal condensation or thermal pumping |
| Mounting / fixing | M22 threaded entry — suspension or bracket arm |
| Dimensions & weight | Dimensioned drawing and weight per size supplied with each offer |
| Wiring | Plug-in terminal block · tool-free connectors · M20 × 1.5 stainless cable gland IP68 |
| Temperatures | Operation −30 °C / +50 °C (ta 50 °C) · storage −40 °C / +80 °C |
| Power supply | 220 – 240 V AC · 50 / 60 Hz — 90 – 305 V AC optional |
| Driver | Programmable DALI-2 · D4i + DT8 via NFC · efficiency > 94 % · power factor > 0.95 · dim-to-off < 0.5 W |
| Surge protection | Integrated type II SPD 10 kV common mode / 6 kV differential mode (10 kA), end-of-life indicator — 20 kV external SPD optional (SP20) |
| Thermal controller | Thermal controller NTC-ETM DIGITAL — NTC probe on LED array and driver, digital threshold programmable via NFC, automatic current reduction when the threshold is exceeded |
| Wattages & flux | 20 · 30 · 40 · 50 · 60 · 80 · 100 · 120 · 150 W — up to 28 050 lm (4000 K · CRI 70 · Tq 25 °C) |
| Colour temperatures | 2700 · 3000 · 4000 · 5000 K — Tunable White 2700 – 6500 K (TW option) |
| CRI · MacAdam | CRI 70 (standard) · 80 · 90 · 97 — < 3 SDCM |
| Lifetime | L90B10 ≥ 100 000 h (IES LM-80 / TM-21) — maintenance factor 0.80 used in studies |
| Dimming & remote management | DALI-2 · D4i + DT8 · stand-alone profiles · Zhaga Book 18 socket — LiDAR node and LidarMesh CMS TALQ 2.7.1 (LD option) |
| Warranty | 7 years — 10 years optional (W10) |
Extract from the 2026 catalogue — non-contractual document. LDT / IES photometric files, drawings and test reports on request.
